Biomonitoring Devices
An alarm system that uses various types of test organisms to monitor the physiological response of organisms due to the introduction of toxic substances, quantifies the level of toxicity, and issues an alarm when the level of toxicity exceeds the set level.
Equipment specifications
-
Measuring items
Toxicity (0 - 100 %)
-
Measurement interval
15 minutes (user setting available)
-
Measurement method
Fluorescence characteristics of reactive algae Measurement method
-
Display
LCD color touch screen (Color / 12.1 inch)
-
* Standard communication specifications in accordance with Water Pollution Process Test CriteriaCommunication method
RS232C, TCP/IP, Analog
-
Equipment operation
Continuous automatic measurement including automatic absorption of specimen/cleaning according to user setting
-
Operating system
Windows-based OS
-
Size
675 × 400 × 1520 mm

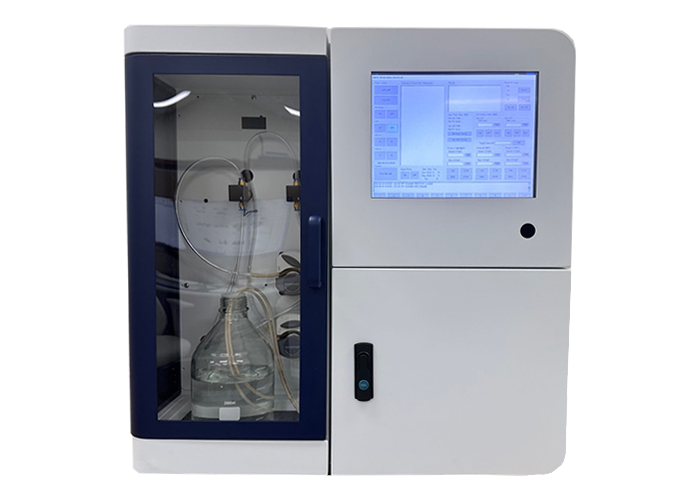

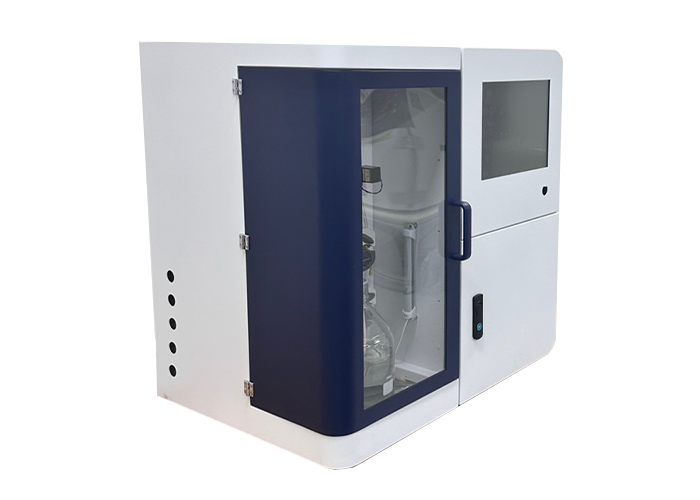

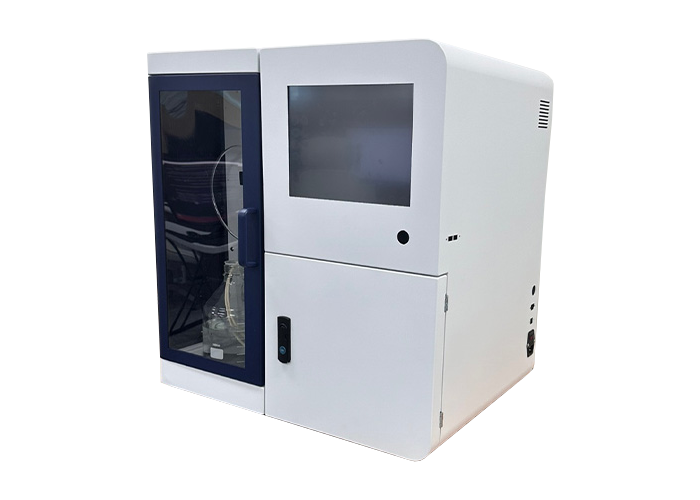

Microalgae biomonitoring device (
)
Overview
- Biomonitoring device in compliance with Biomonitoring Continuous Automatic Measuring Method using Microalgae (to be notified), using chlorella to automatically measure the toxicity of the field
Principles
of analysis
- Injecting specimen in microalgae reaction tank and measuring the fluorescence of changing microalgae to continuously measure the toxicity of specimen
- Injecting base solution (nontoxic specimen) and specimen each in optical reaction tank, followed by a certain number of microalgae, and measuring the changes in fluorescence for a certain period of time
- Comparing the amount of fluorescence changes of base solution and specimen and providing the toxicity of the toxic substance in specimen in 0~100% ratio
Equipment
features
- Chlorella microalgae are designed for continuous culture in the device, allowing unwatched operation for 2 weeks
- During measurement, microalgae are injected to overcome the limit of measuring device that is continuously exposed to toxicity, allowing accurate toxicity calculation
