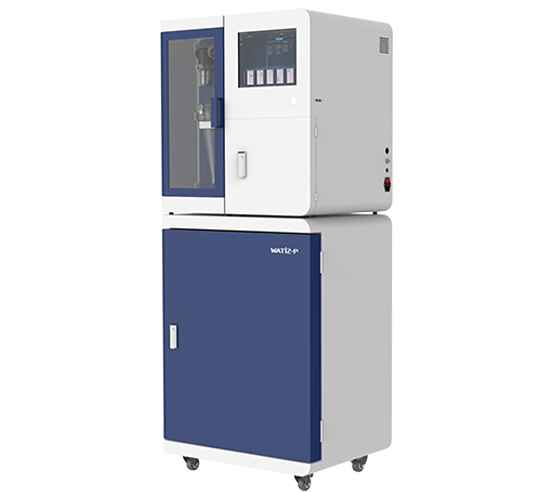

Larva & Mini organism detectors
Equipment specifications
-
Measurement items
Number of larvae and small organisms in the sample
-
measurement period
1 hour (user setting available)
<-- -
Camera
2,048 X 2,048 pix
CMOS Color
-->
-
Measuring cell
Quarts flow cell
-
Collection time
Over 10 minutes (user setting available)
-
* Standard communication specifications in accordance with Water Pollution Process Test CriteriaCommunication method
RS232C, TCP/IP, Analog
-
Equipment operation
Continuous automatic measurement including automatic absorption of specimen/cleaning according to user setting
-
Operating system
Windows-based
-
Size
675 × 400 × 1520 mm
Unmanned continuous detector that monitors mini organisms and larva in tap water in real time
Overview
- Complaints raised on water quality caused by mini organisms such as Chironomus larva in tap water after filtration and disinfection in purification plants
- For prompt response system, an unmanned continuous monitoring device that can monitor mini organisms such as Chironomus larva is needed
Principles
of analysis
- Recognizing and calculating population of larva and mini organisms in water through continuous shooting using optical lens and hi-resolution camera and image processing
- Larva and mini microorganism classification through deep learning-based learning
System features
- Sampling mini organisms in specimen in specific interval according to user setting and automatic continuous monitoring using sample transportation device
- Prompt and accurate determination of larva and mini organism through the analysis of continuous shooting images
- Automatic monitoring and analysis of mini organisms in the sample regardless of proficiency of analyzer
- Database update on new mini organism
- Saving and viewing of monitoring and analysis results
- Extension to establish an integrated monitoring system
